SUN-2300 Waterproof Veterinary Pregnancy Ultrasound Scanner 5Mhz Probe Animal USG Pig sheep goats

1.1 Introduction

The instrument uses microcomputer control and digital converter (DSC), adopts technologies such as digital beamforming (DBF), real-time dynamic aperture imaging (RDA), real-time dynamic sound velocity tracking (DRA), real-time point-by-point dynamic receiving focusing (DRF), etc. The machine image is clear, stable and high resolution.

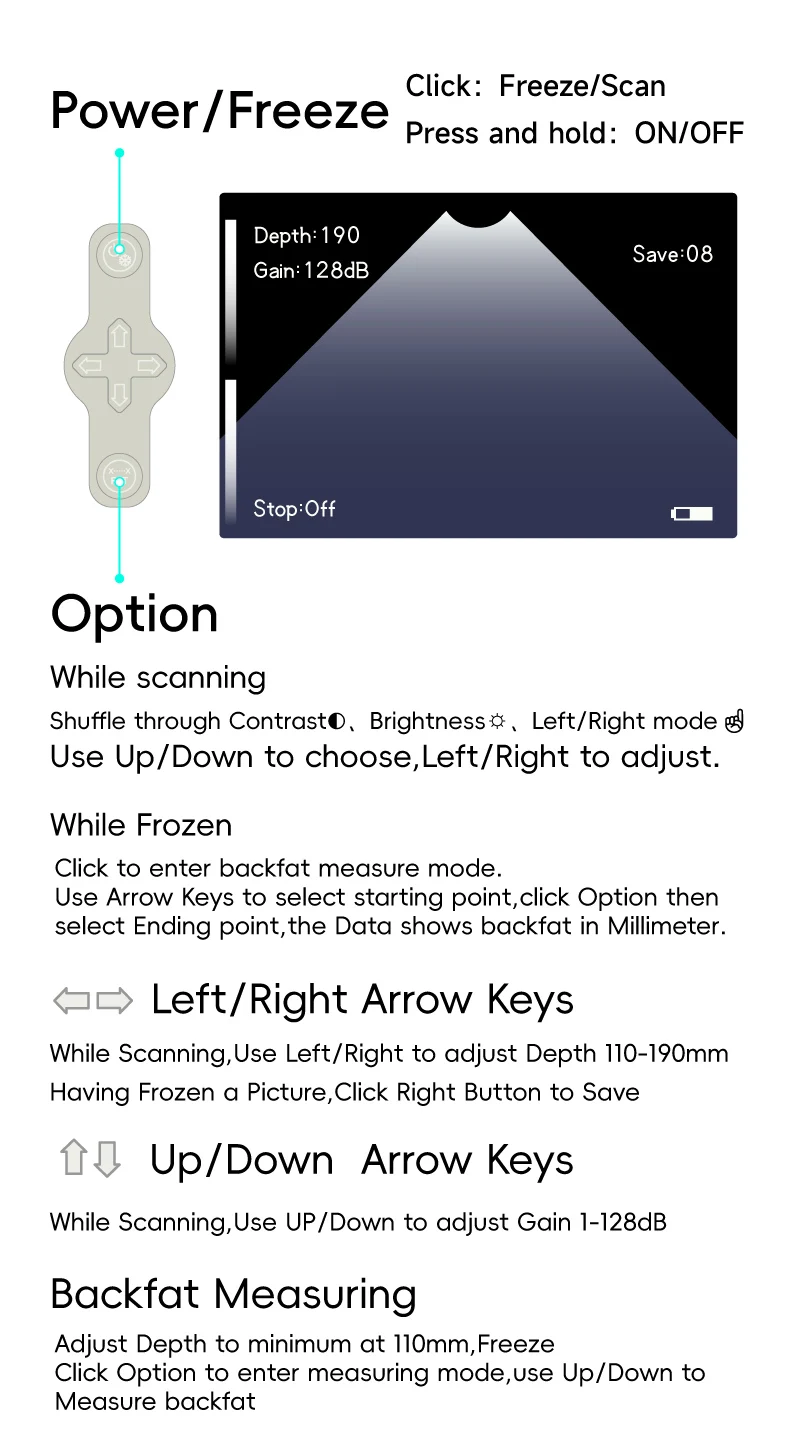

It has B display mode; it can realize image real-time, freezing and zooming in; image distance measurement; image gray scale is 256 levels.
The power supply method combines the AC adapter and the built-in lithium-ion rechargeable battery.

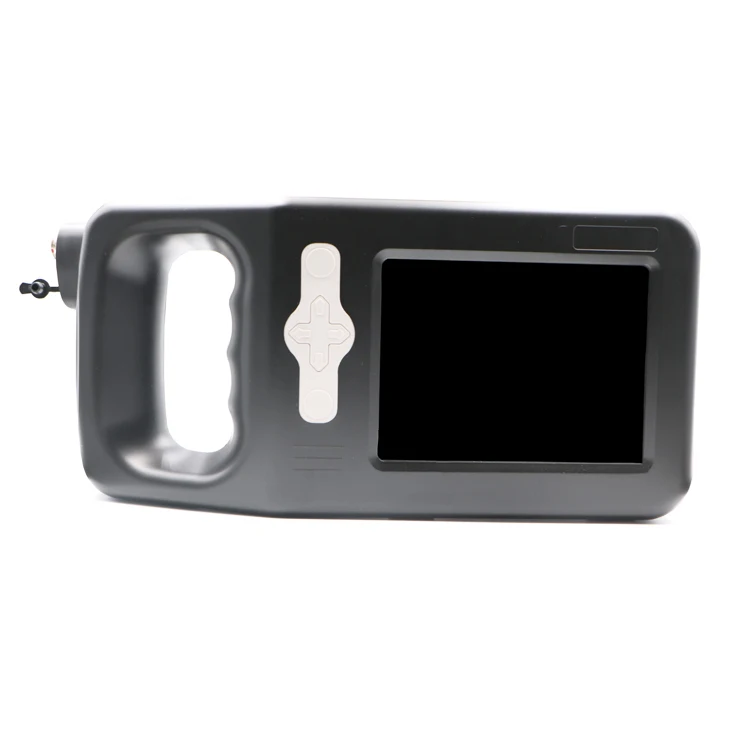

Using 5.6-inch TFT-LCD display and programmable device (FPGA) and surface mount technology (SMT), the whole machine is small in size and light in weight.

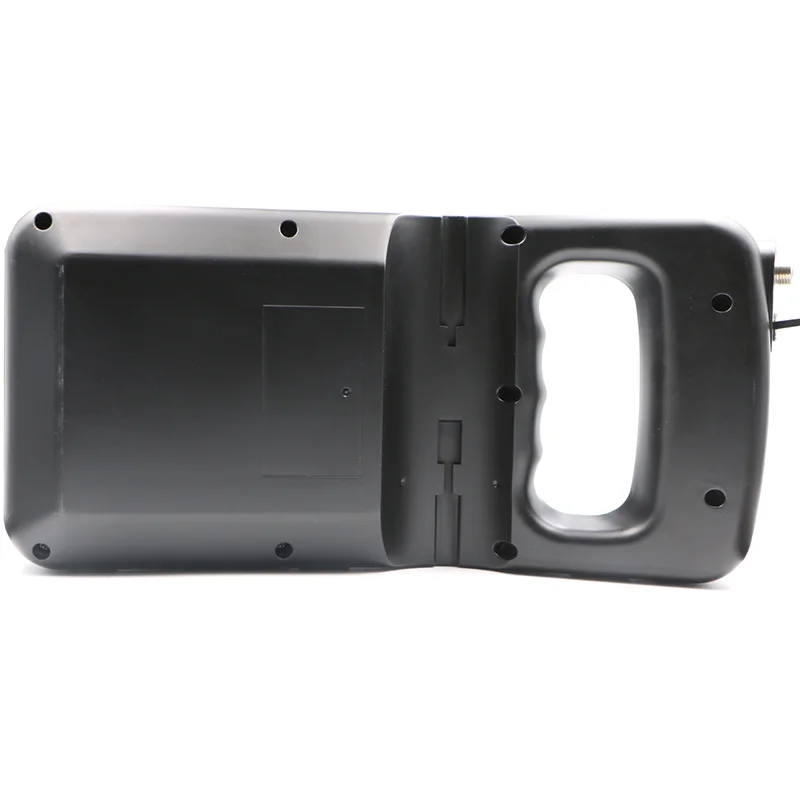

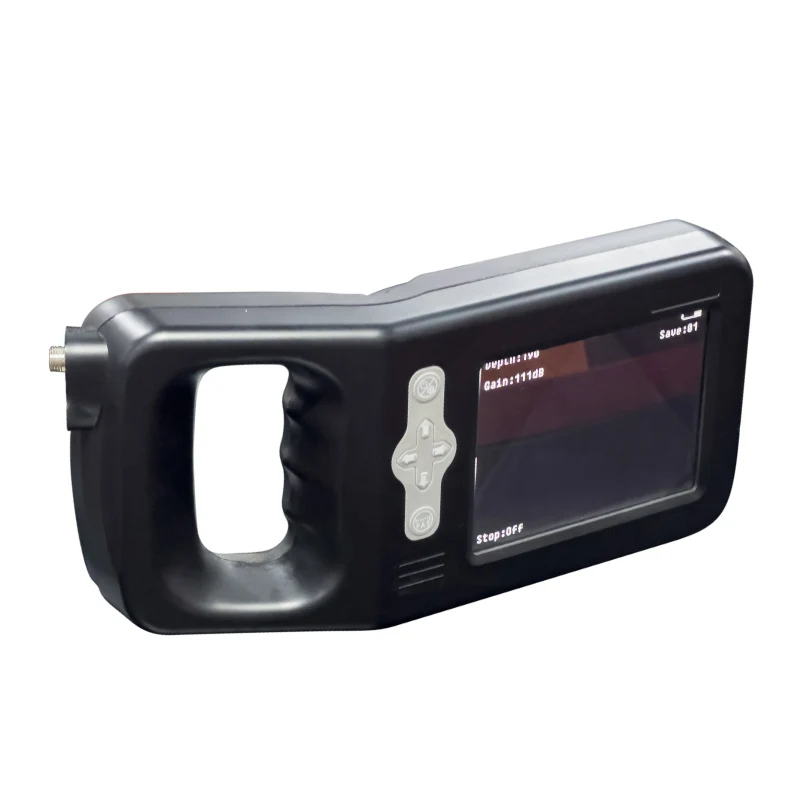

The hand-held structure of the injection molded shell is convenient for the diagnosis of large and small animals.

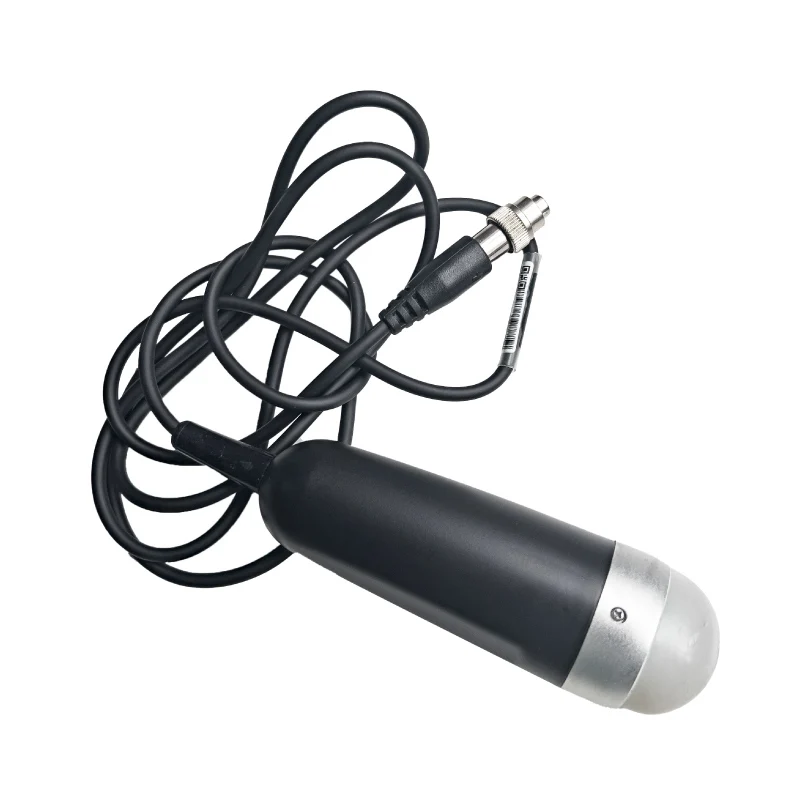

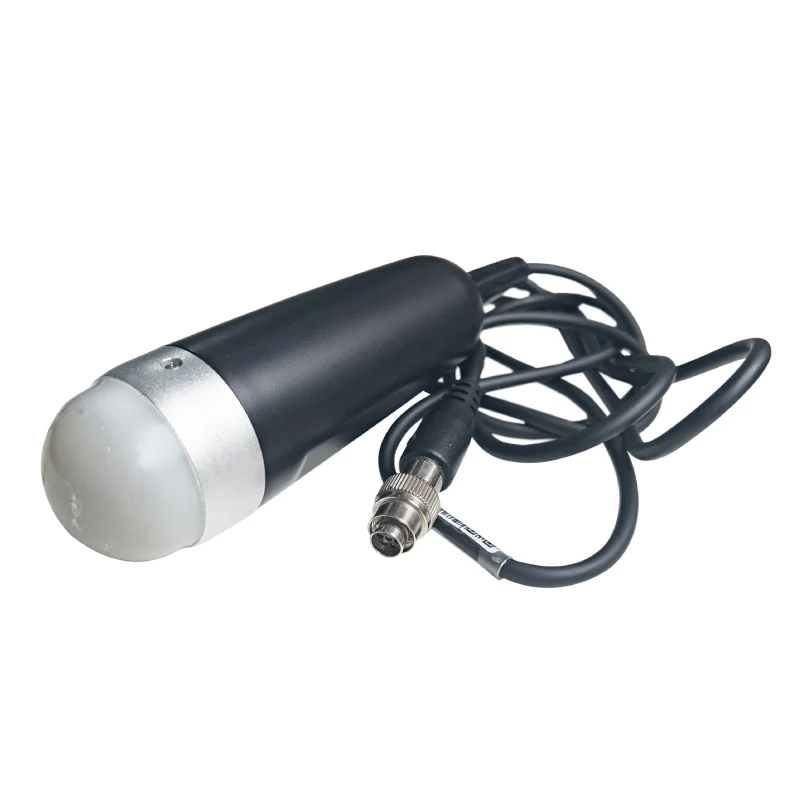

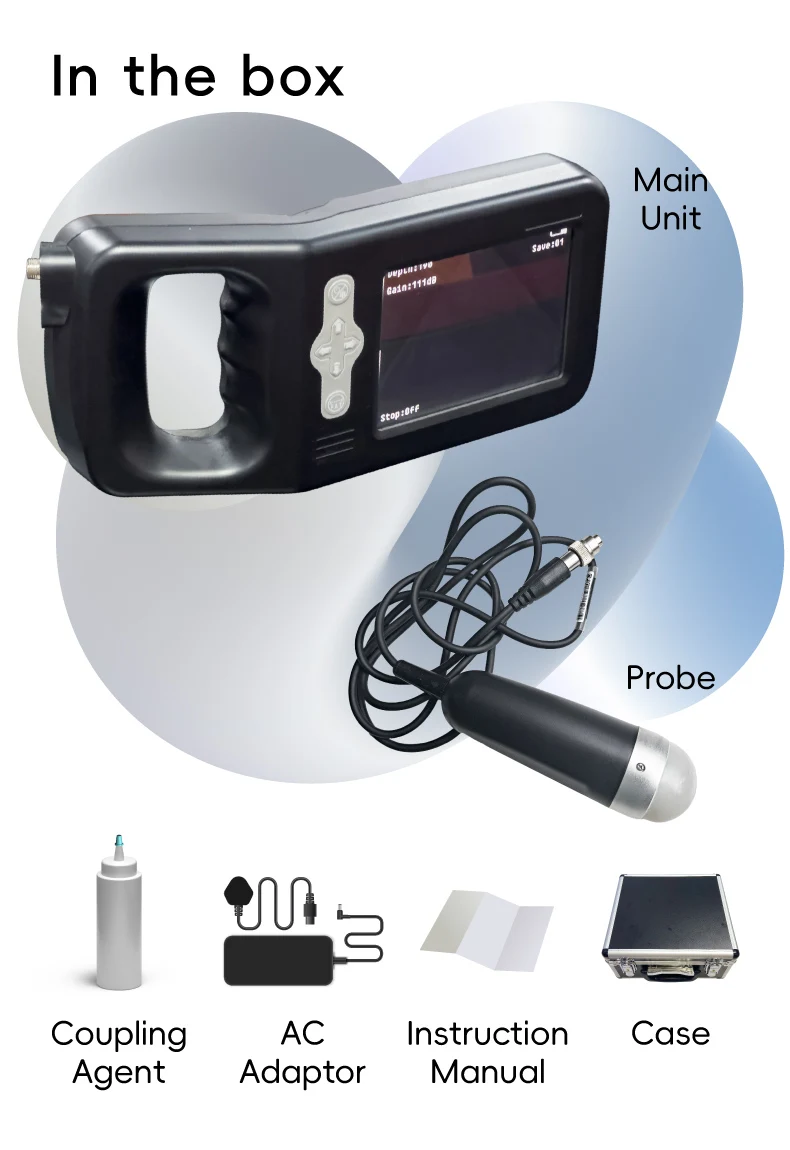

The instrument consists of a host, a probe, and an adapter. Standard 5MHz waterproof magnetic levitation probe.
1.2 Scope of application
It is suitable for the diagnosis of pigs, sheep, dogs and other animals.

Model		SUN-2400
Probe		5MHz Magnetic Levitation Probe
Blind area(mm)		≤ 6
Geometric position Accuracy (%)	Lateral	≤20
	Axial	≤10
Monitor size (inches)		5.6 TFT-LCD
Display mode		B
Image gray scale		256
Image Image Rotation		Left & Right
Graphics storage		15
Measuring function		backfat measurement
Battery capacity		3200mAh
Host power consumption		13W for non-charging work/25W for charging work
Adapter Power Consumption		45W
