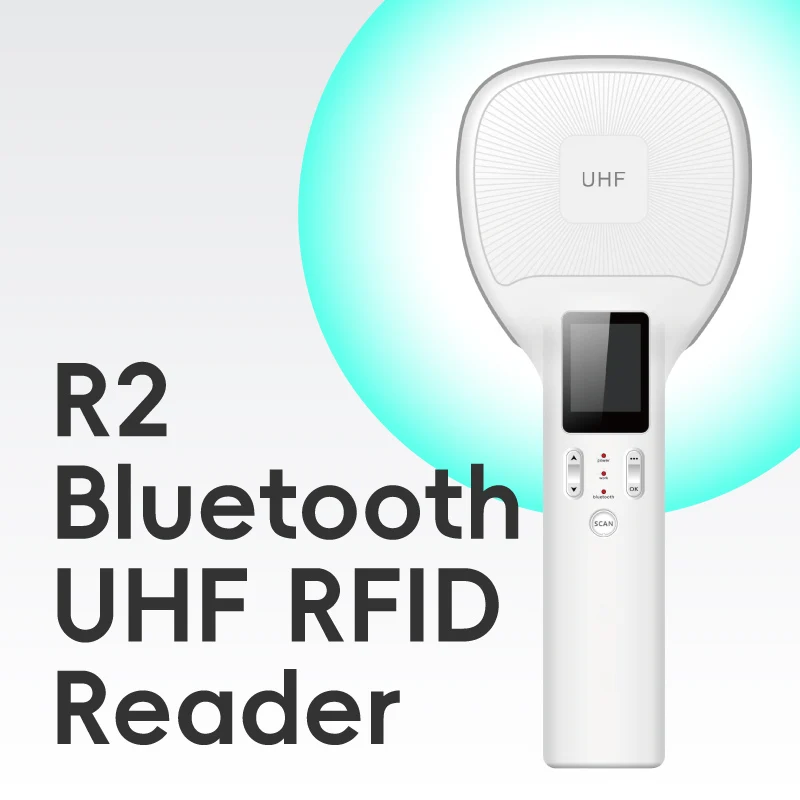

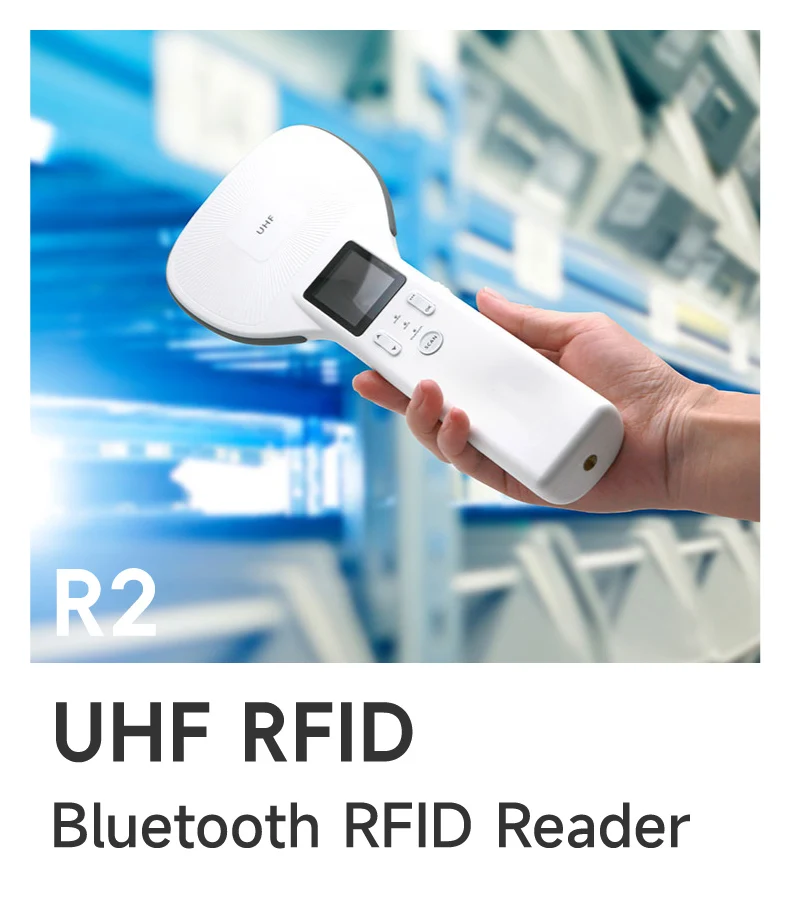

R2 BLUEWORTH Portable Animal UHF RFID Ear Tag Scanner Light and Stylish Design

R2 BLUEWORTH Portable Animal UHF RFID Ear Tag Scanner Light and Stylish Design

About it

UHF RFID Reader

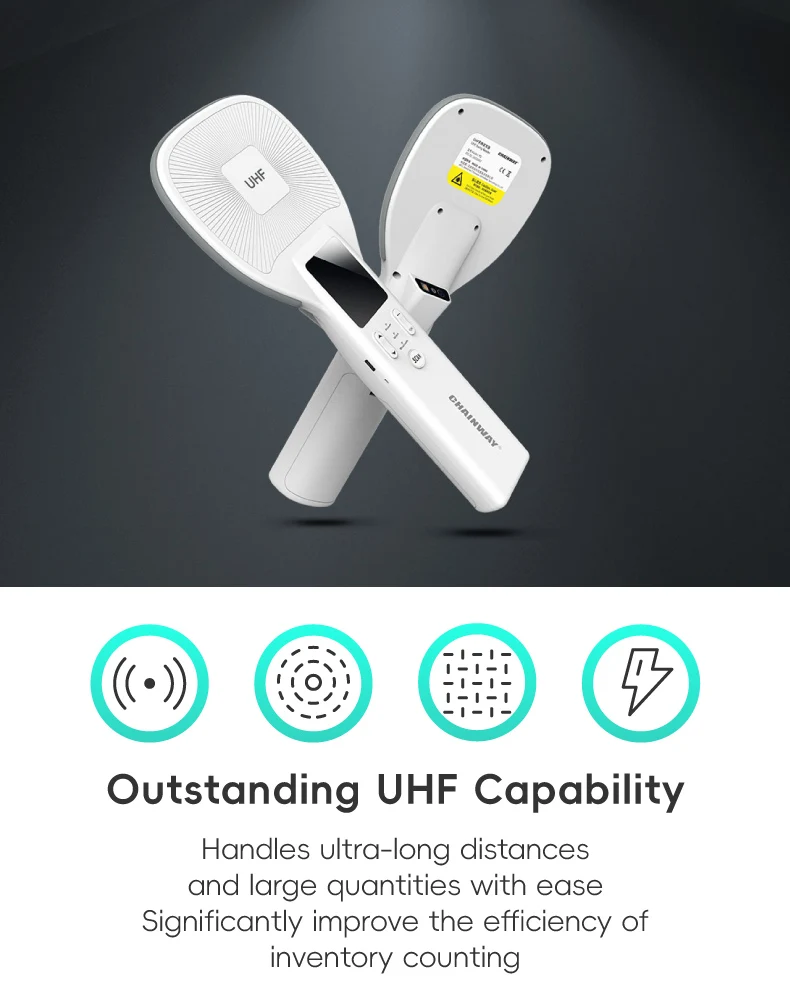

Stronger UHF Performance, Higher Security and Reliability Chainway R2 is an portable high-performance UHF RFID Reader. It integrates with Impinj E710 and supports Impinj Gen2X, offering industry-leading UHF performance. R2 adopts an integrated design, provides more stable UHF performance, and delivers higher durability which enables it to be widely used in banking, public security, warehousing, retail, logistics and other industries.

Sepcifications:

Physical Characteristics

Dimensions	282 x 117.5 x 32mm / 11.10 x 4.63 x 1.26in.
Weight	334 g / 11.78oz. (with battery)

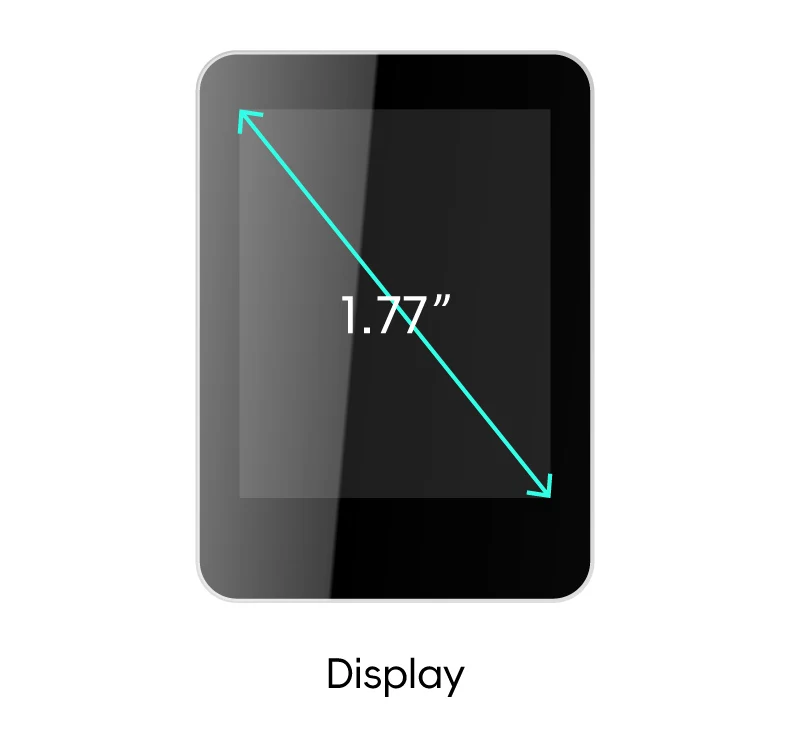

Display	1.77 inch, 128 x 160
Power	Battery specification: 5200 mAh Standby: over 70 hours (keeping bluetooth connected) Continuous use: up to 6 hours (UHF reading) Charging time: 3-4 hours (with standard adaptor and USB cable)
Interfaces	USB Type-C
Indicator LED	Power, Work, Bluetooth

Communication

Bluetooth

Bluetooth Low Energy (BLE) 5.0

Developing Environment

SDK	Android / iOS
Language	Java / Objective-C
Tool	Android Studio / Xcode

Performance

MCU	Cortex-M3 72MHz
RAM+ROM	50000 tags

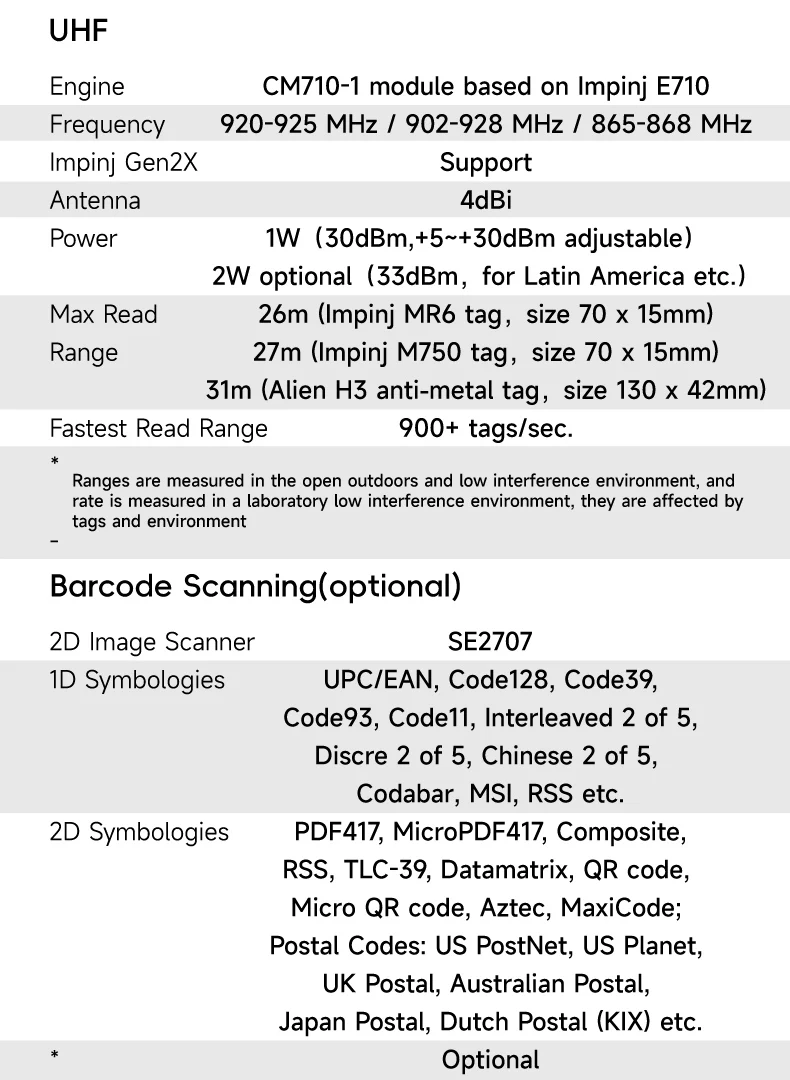

UHF RFID

Engine	CM710-1 module based on Impinj E710
Frequency	865-868MHz / 920-925MHz / 902-928MHz
Impinj Gen2X	Supported
Protocol	EPCglobal Gen 2 (ISO18000-6C)
Antenna	Linear Polarized antenna (4dBi)
Output Power	1W (30dBm, +5dBm to +30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.)
Fastest Read Rate	900+ tags/sec
Max Read Range	26m (Impinj MR6 tag, size 70 x 15mm) 27m (Impinj M750 tag, size 70 x 15mm) 31m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Note	* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.

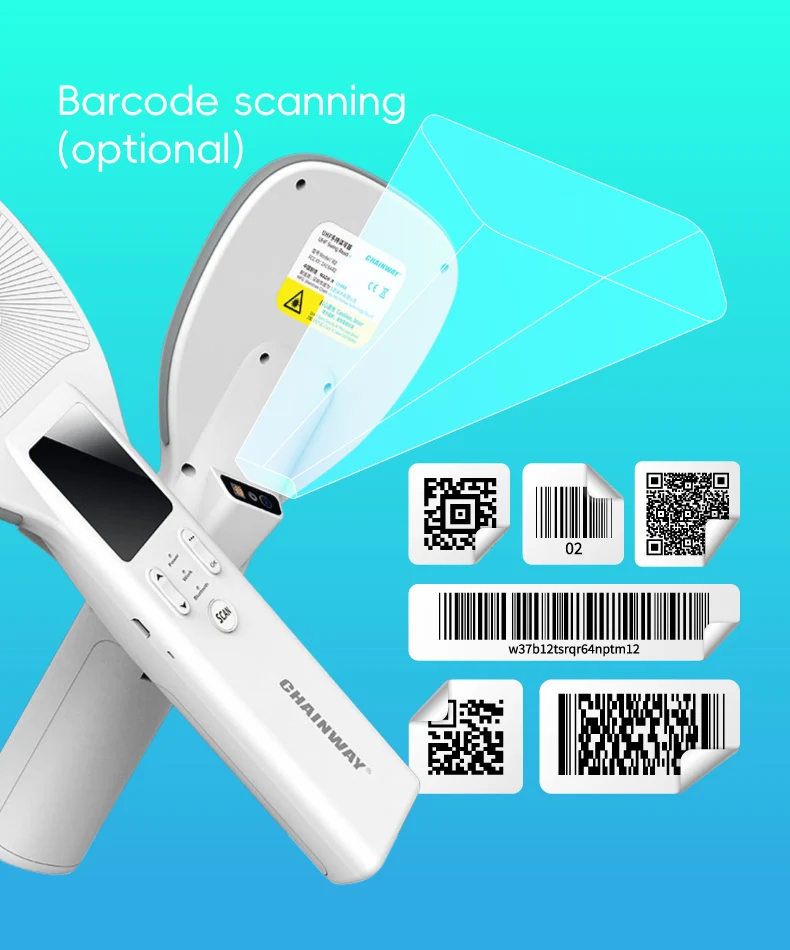

Barcode Scanning

2D Imager Scanner	SE2707
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note	* This function is optional
