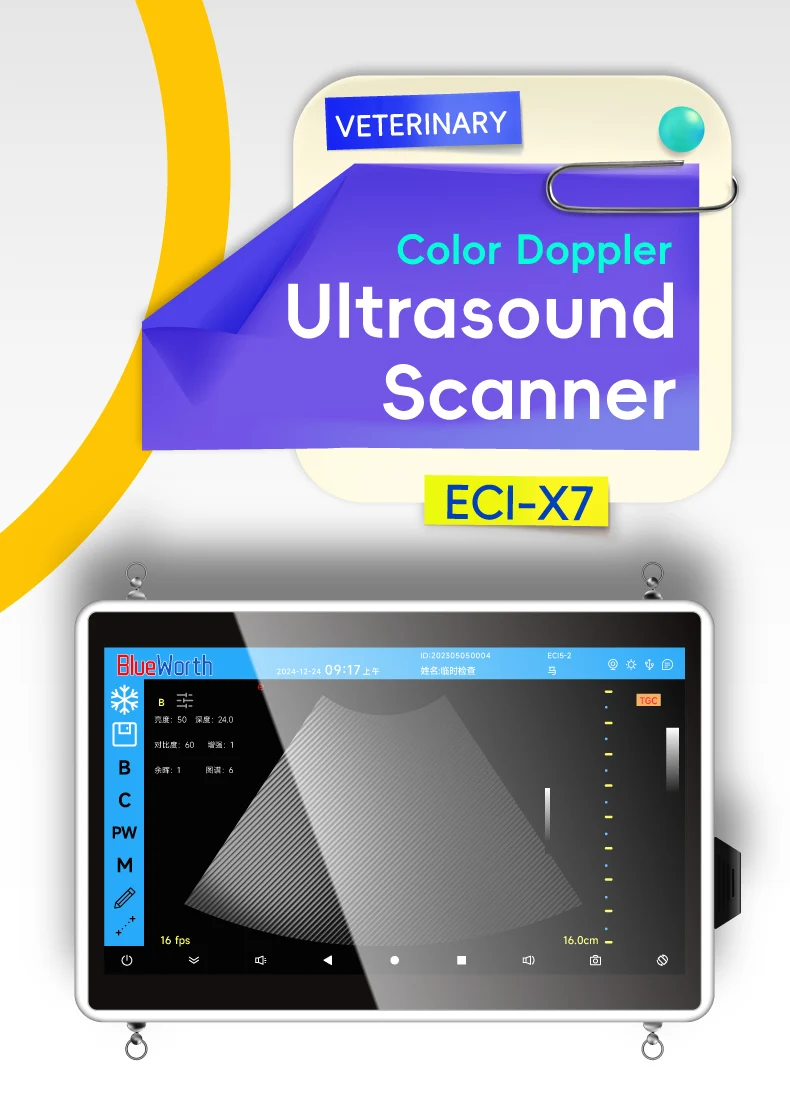

ECI-X7 IPX6 Waterproof Veterinary Color Doppler Ultrasound upload wirelessly WIFI Upload Livestock Equipments

ECI-X7 IPX6 Waterproof Veterinary Color Doppler Ultrasound upload wirelessly WIFI Upload Livestock Equipments

Introduction
The instrument adopts microcomputer control and digital scan converter (DSC), adopts digital beam forming (DBF), real-time dynamic aperture imaging (RDA), real-time dynamic sound velocity traversing (DRA), real-time point-by-point dynamic receiving focusing (DRF), numerical control dynamic Frequency scanning (DFS), frame correlation and other technologies, the image of the whole machine is clear, stable and high resolution.
With B, C, PW display mode; image grayscale 256 levels.
It can realize image real-time, freeze, store, recall, flip up and down, flip left and right, and large-capacity movie playback;
Date, clock display, range, distance, perimeter, area measurement.

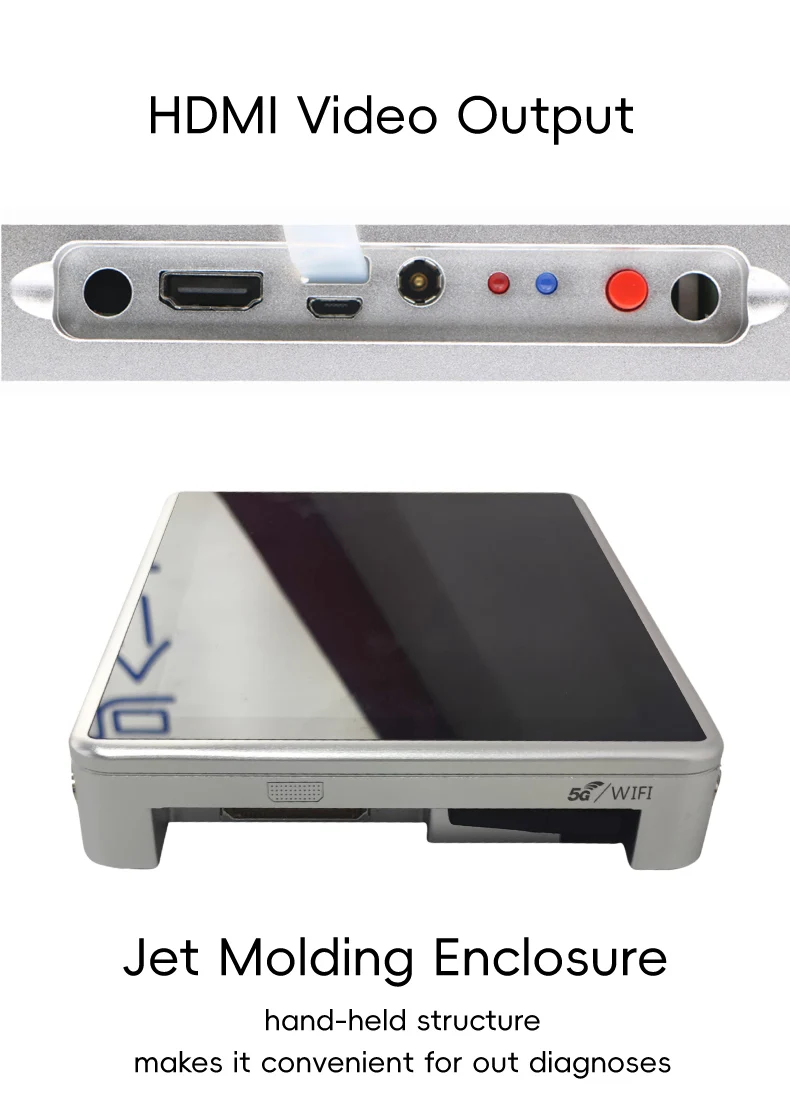

HDMI video output, which can be connected to video equipment such as video printers and large-screen displays.
Ergonomic hand-held structure, comfortable hand feeling, relieves operational fatigue, and facilitates out-of-home diagnosis.

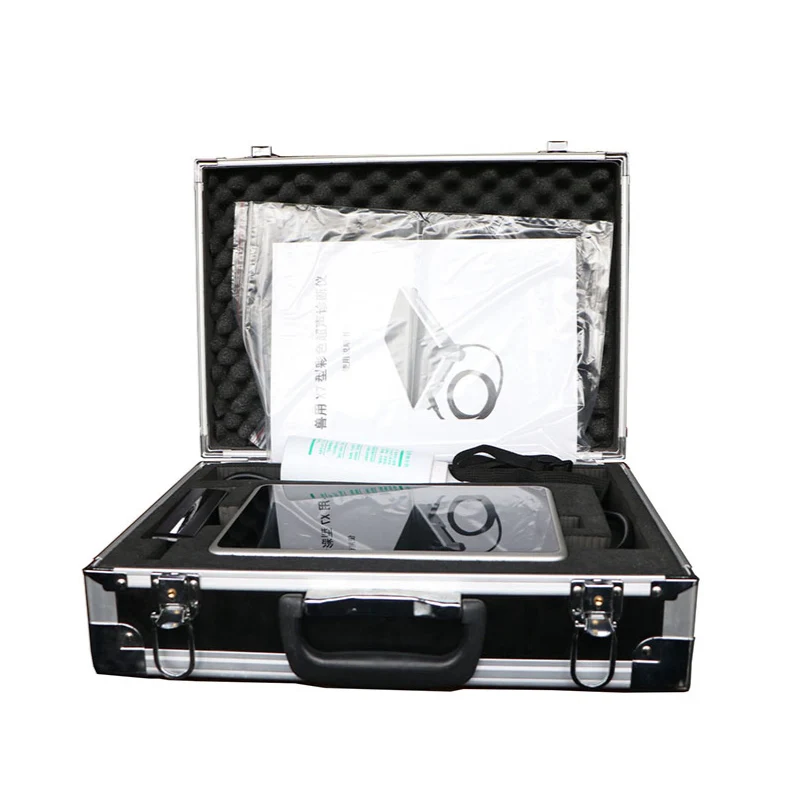

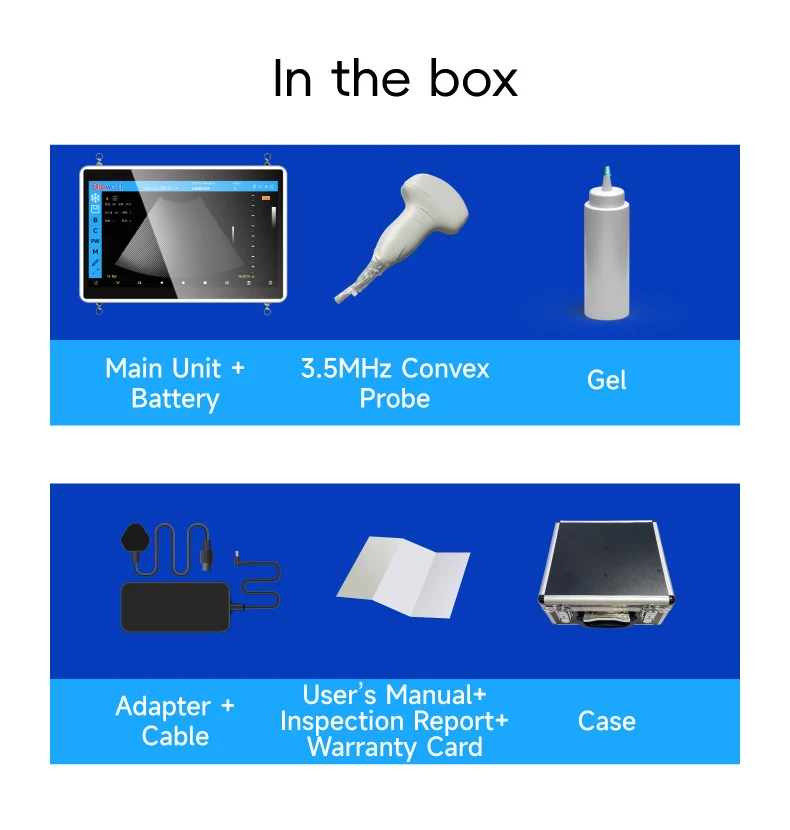

The device consists of two parts, the host and the probe. Standard CXA60R/3.5MHz convex array

Model		ECI-X7
Probe		6.5MHZ Rectal	3.5MHZ Convex Array	6.0MHZ Slightly Convex
Maximum detection depth (mm)		≥80	≥140	≥90
Resolution (mm)	Lateral	≤ 1 (depth ≤ 60)	≤ 2(depth ≤ 80); ≤ 3(80 < depth ≤ 130)	≤ 3 (depth ≤ 60)
	Axial	≤ 1 (depth ≤ 80)	≤1(depth ≤ 80)	≤1(depth ≤ 60)
Blind area(mm)		≤1	≤ 2	≤2
Geometric position Accuracy (%)	Lateral	≤4	≤6.5	≤6.5
	Axial	≤4	≤4	≤4
Monitor size (inches)		10.1-inch touch screen
Display mode		B/C/PW
Screen Resolution		1920*1080
Frequency adjustment		2~11Mhz
Image gray scale		256
Image storage		64G
Filtering		0~100dB
Scanning Depth Adjustment		2-320mm
Image magnification		12 times
Replay		≥400 frames
Measurement		Distance, trajectory area, perimeter
Measuring function		Backfat measurement(±1mm)
Sound Power		10%~100%
Continuous working hours		≥4hours
Dimension		250mm165mm35mm
Net Weight		1900g
