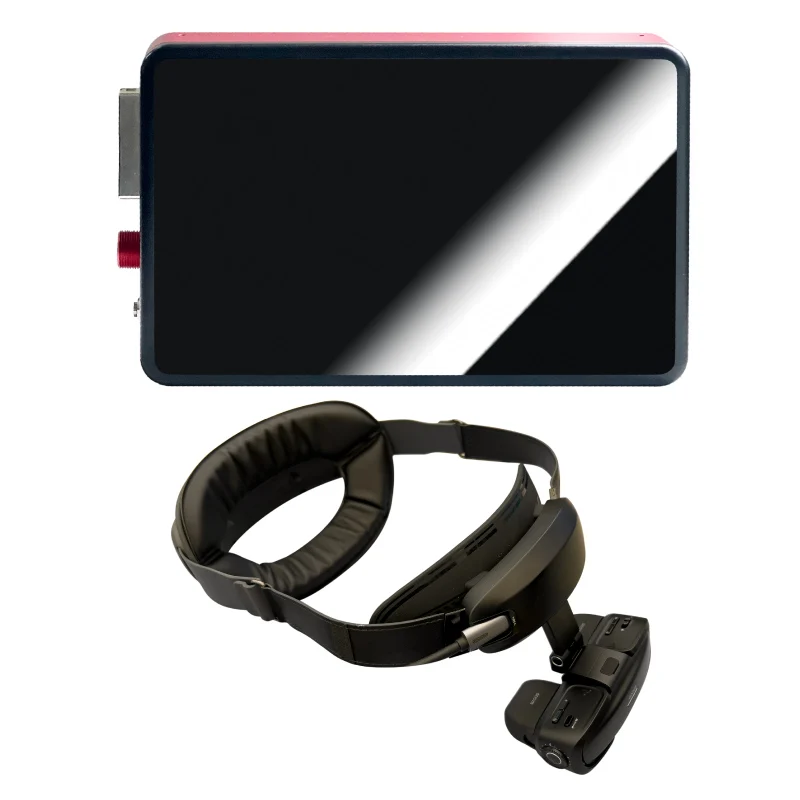

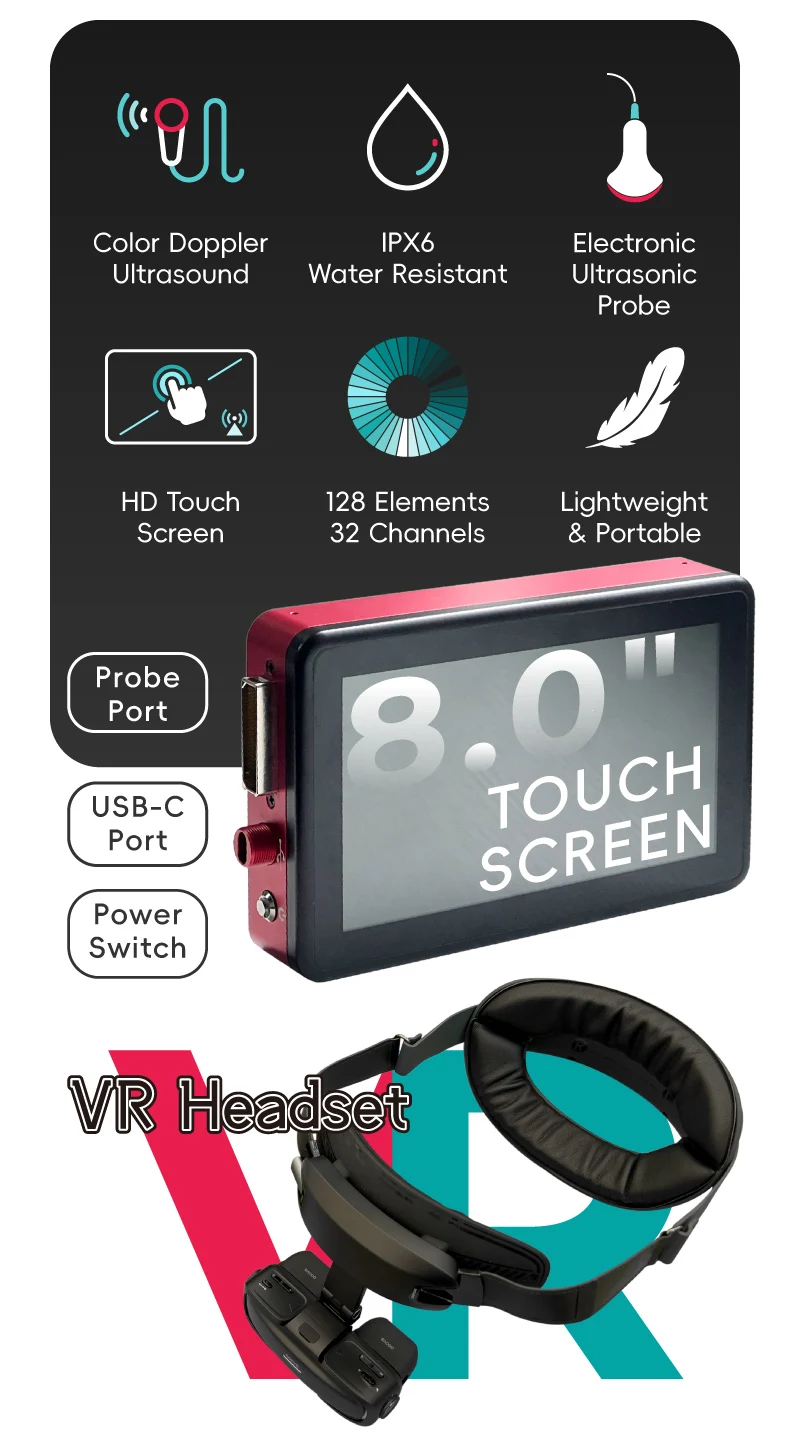

ECI-X5V Veterinary Color Doppler VR Ultrasound Scanner with LNA64/6.5MHz Rectal Probe Waterproof IPX6 8.0 inches Touch Screen

ECI-X5V Veterinary Color Doppler VR Ultrasound Scanner with LNA64/6.5MHz Rectal Probe Waterproof IPX6 8.0 inches Touch Screen

About it:

The ECI-X5V VR Doppler Ultrasound Scanner is a powerful and versatile Color Doppler system which provides you the best solution for veterinary ultrasound imaging with excellent performance. Due to the comprehensive configurations, dedicated veterinary workflow and integrated design, you can be assured of an outstanding ultrasound experience in both large and companion animals. Packed with professional innovative technology inside this smart portable system makes it a perfect veterinary ultrasound system with excellent image quality and various advanced features.

What is the color doppler ?

Doppler ultrasonography is used to quantify the direction and velocity of a moving subject. In veterinary medicine this is most commonly applied to blood flow.

Doppler ultrasonography utilises the Doppler Effect, which is named after Christian Doppler who described the phenomenon in 1842. The effect is the change in frequency of wave (in the case of ultrasound a sound wave) following the interaction of the wave with a moving object. We experience the effect in day-to-day life; a passing ambulance’s siren or car’s horn will change in pitch as the moving object (in this example, a vehicle) emitting the noise travels past us.

Model		ECI-X5V
Probe		LNA64/6.5MHz Rectal Probe
Dead Zone(mm)		≤ 3
Geometric position Accuracy (%)	Horizontal	≤5
	Axial	≤5
Monitor size (inches)		8.0 Inches
Display mode		B, BB, BM, M, C, PW
Body mark		24 kinds
Frequency		6.5~9.0MHz
Backfat		thickness
Cine-loop		200F
Measure		Distance, Area, Perimeter
Obstetrics		Mutiple fetus,Crown-rump length(CRL), Ulterine diameter, Transverse trunk diameter(TTD)
