ECI-3000A+ Veterinary Ultrasound instrument USB flash disk Output Waterproof Type USG

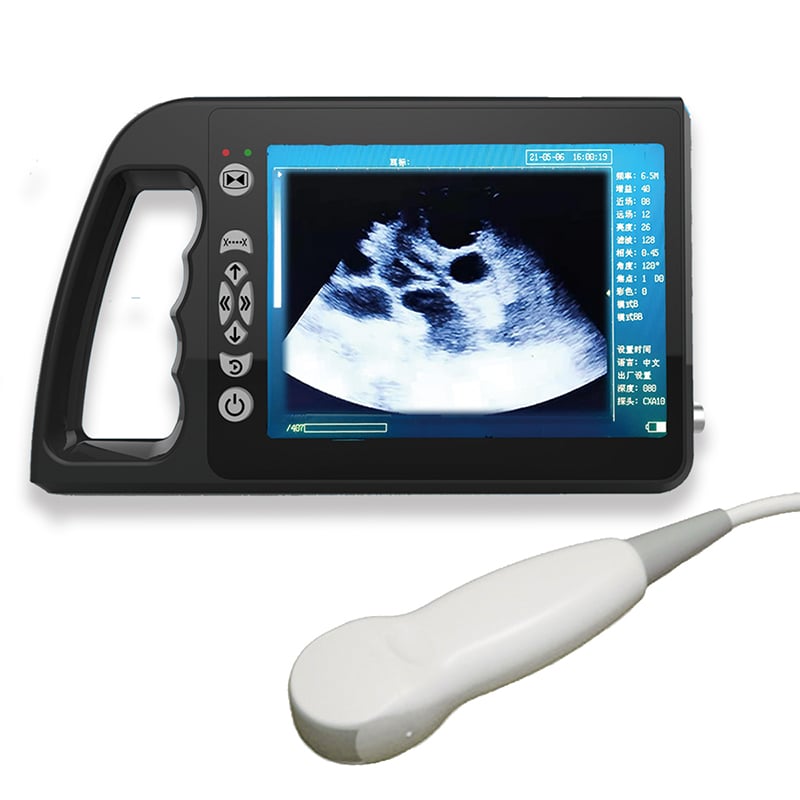

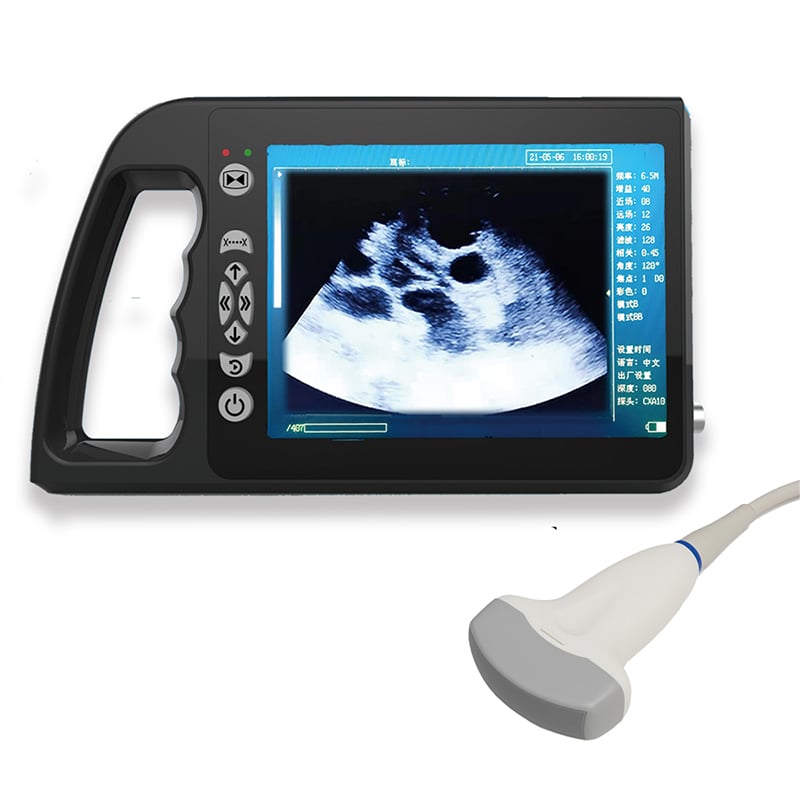

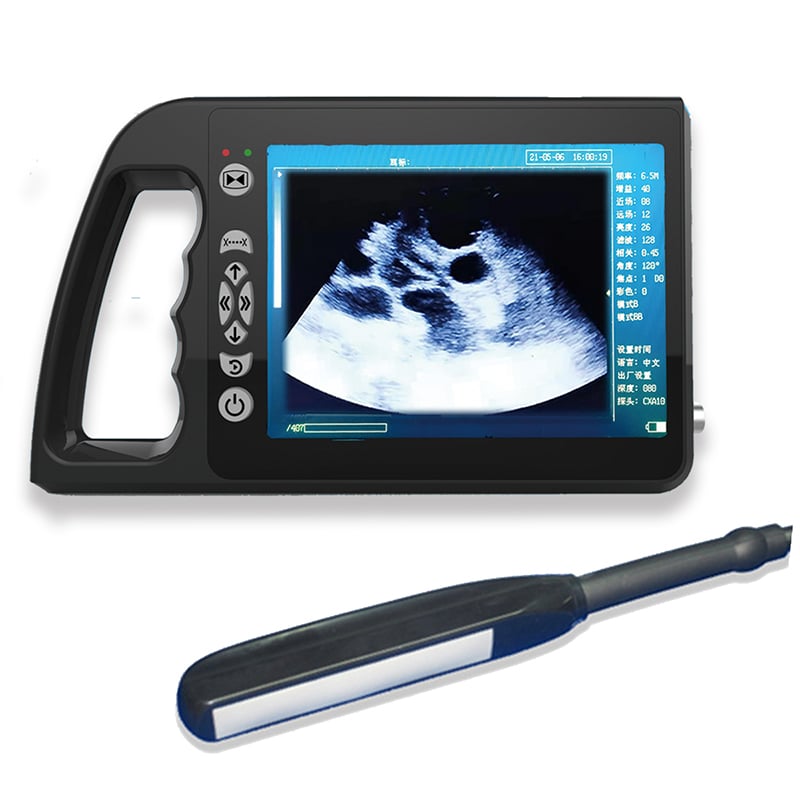

The instrument uses microcomputer control and digital scan converter (DSC), and adopts digital beamforming (DBF), real-time dynamic aperture imaging (RDA), real-time dynamic sound velocity tracking (DRA), real-time point-by-point dynamic receiving focusing (DRF) and other technologies, The image of the whole machine is clear, stable and has high resolution.The gray scale of the image is 256 levels.16-color pseudo-color.It can realize image real-time, freeze, storage, recall and large-capacity movie playback; it has functions such as multi-level scanning depth, scanning angle, filtering, frame correlation coefficient adjustment, focus number, and focus position adjustment.Date, clock display, backfat distance measurement.The power supply mode combines the AC adapter and the built-in lithium-ion rechargeable battery, and the special power-saving mode makes the battery power supply more durable.The device consists of two parts, the host and the probe. Standard CXA60R/3.5MHz convex array, optional CXA20R/5.0MHz micro-convex probe, LNA64/6.5MHz animal rectal probe, LNA40/7.5MHz high-frequency linear array probe.

1.2 Scope of application It is suitable for the diagnosis of pigs, horses, cattle, sheep, donkeys and other animals.

Model		ECI-3000A+
Probe		6.5MHZ Rectal	3.5MHZ Convex Array	5.0MHZ Slightly Convex
Maximum detection depth (mm)		≥100	≥160	≥110
Resolution (mm)	Lateral	≤ 1 (depth ≤ 60)	≤ 3 (depth ≤ 80); ≤ 5(80 < depth ≤ 130)	≤ 3 (depth ≤ 60)
	Axial	≤ 1 (depth ≤ 80)	≤1(depth ≤ 80)	≤1(depth ≤ 60)
Blind area(mm)		≤3	≤ 6	≤5
Geometric position Accuracy (%)	Lateral	≤5	≤7.5	≤7.5
	Axial	≤5	≤5	≤5
Monitor size (inches)		8 TFT-LCD
Display mode		B
Image gray scale		256
Image storage		64 frames
Filtering		0-192dB (adjustment range 64-192dB)
Scanning Depth Adjustment		70-140mm
Replay		≥400 frames
Frequency adjustment		3 level
Image Processing		Pseudo-color, grayscale correction, image smoothing, histogram
Measuring function		backfat measurement(±1mm)
Frame dependent adjustment		available
Continuous working hours		≥4hours
Dimension		278mm165mm39mm
Net Weight		1380g
