BLUEWORTH Animal UHF RFID Ear Tag Scanner C5 Ear Tag Handle Reader QR code scanner

BLUEWORTH Animal UHF RFID Ear Tag Scanner C5 Ear Tag Handle Reader QR code Scanner Andriod 11

About it

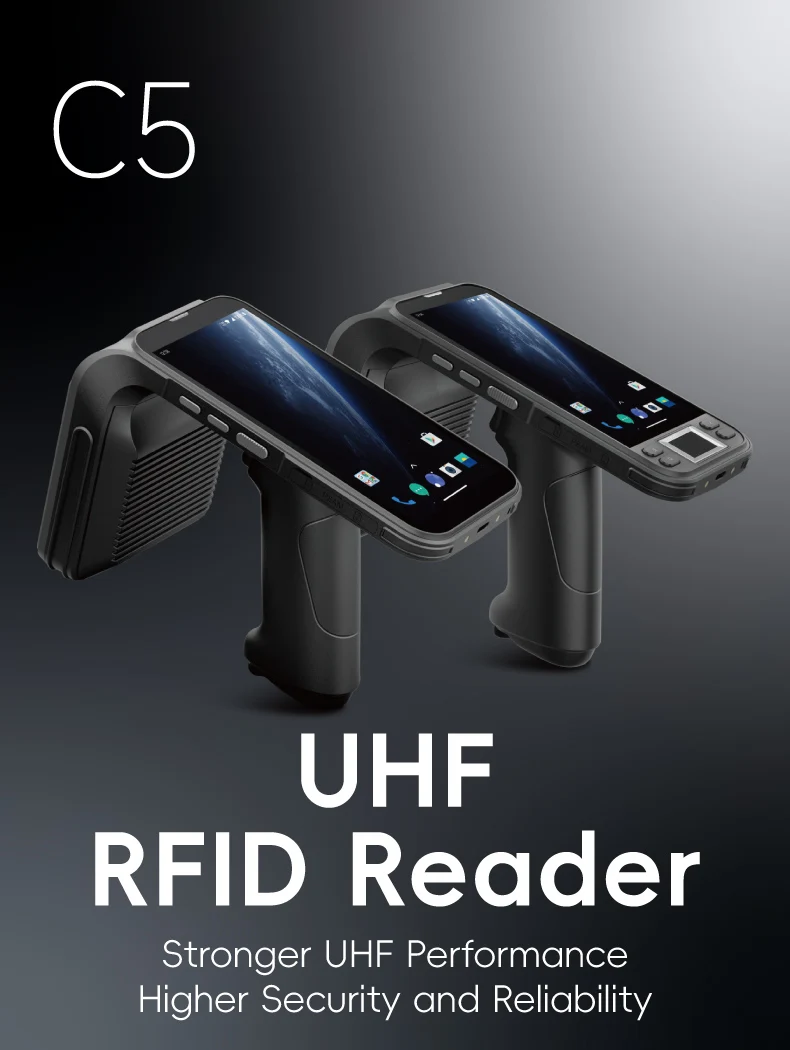

C5 UHF RFID Reader (Android 11/13)
Stronger UHF Performance, Higher Security and Reliability Chainway C5 is an all-in-one high-performance UHF RFID Reader. It integrates with Impinj E710 and supports Impinj Gen2X, offering industry-leading UHF performance. C5 adopts an integrated design, provides more stable UHF performance, and delivers higher durability. It features Android 11/13, octa-core processor, optional mass internal memory and a large capacity removable battery. C5 also supports 2D scanning, NFC, fingerprint recognition and other functions, which enables it to be widely used in banking, public security, warehousing, retail, logistics and other industries.

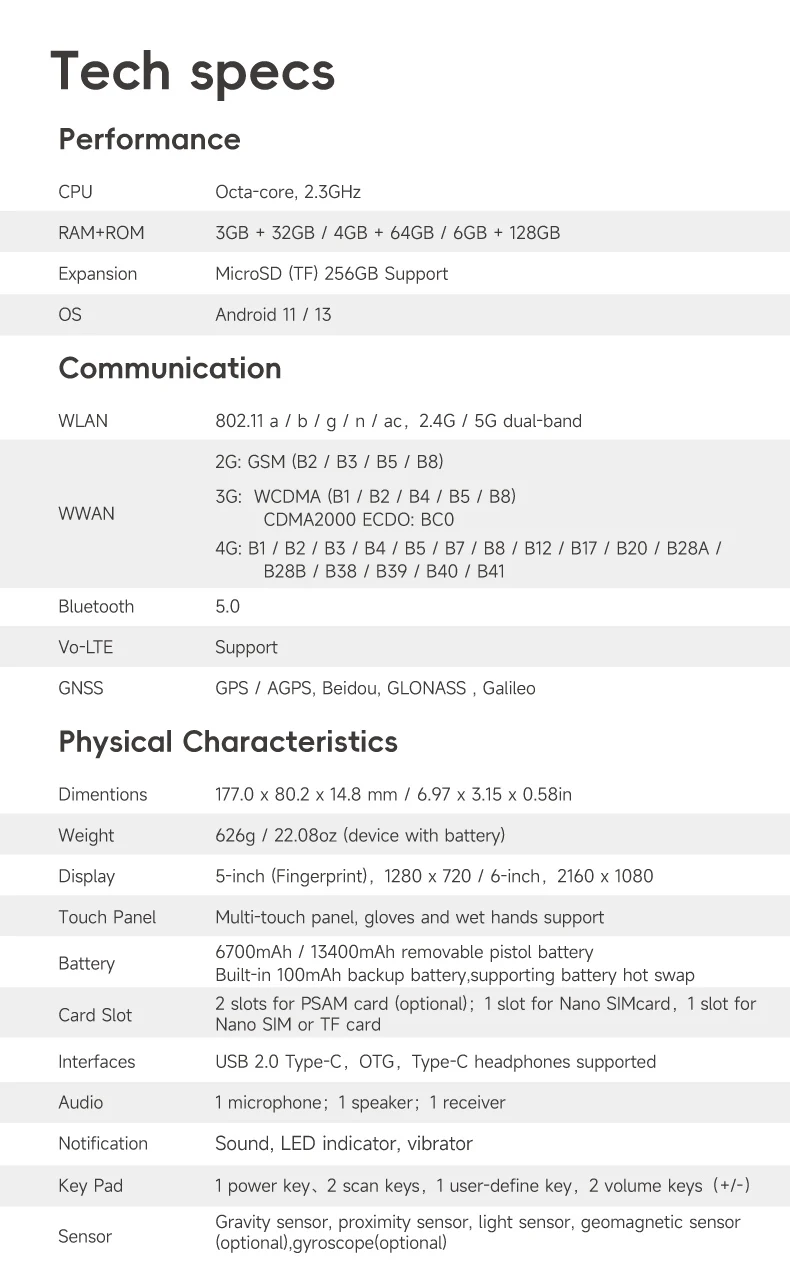

Sepcifications:

Physical Characteristics

Dimensions	177.0 x 80.2 x 14.8mm / 6.97 x 3.15 x 0.58in
Weight	626g / 22.08oz. (device with battery)
Display	5-inch (Fingerprint); 1280 x 720 / 6-inch; 2160 x 1080
Touch Panel	Multi-touch panel, gloves and wet hands supported; Corning Gorilla Glass
Power	6700mAh / 13400mAh removable pistol battery Built in 100mAh backup battery, supporting battery hot swap
Notification	Sound, LED indicator, vibrator
Interfaces	USB 2.0 Type-C, OTG, Type-C headphones supported
Card slot	2 slots for PSAM card (optional); 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Audio	1 microphone; 1 speaker; 1 receiver
Keypad	1 power key, 2 scan keys, 1 user-defined key, 2 volume keys (+/-)
Sensors	Gravity sensor, proximity sensor, light sensor, geomagnetic sensor (optional), gyroscope (optional)

Communication

WLAN	802.11 a / b / g / n / ac, 2.4G / 5G dual-band
WWAN	2G: GSM (B2 / B3 / B5 / B8) 3G: WCDMA (B1 / B2 / B4 / B5 / B8) CDMA2000 ECDO: BC0 4G: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 / B28A / B28B / B38 / B39 / B40 / B41
Bluetooth	5.0
Vo-LTE	Support
GNSS	GPS / AGPS, GLONASS, BeiDou, Galileo

Developing Environment

Operating System	Android 11/13
SDK	Chainway Software Development Kit
Language	Java
Tool	Eclipse / Android Studio

Performance

CPU	Octa-core, 2.3GHz
RAM+ROM	3GB + 32GB 4GB + 64GB (Optional)
Expansion	Supports up to 256GB Micro SD (TF) card

UHF RFID

Engine	CM710-1 module based on Impinj E710
Frequency	865-868MHz / 920-925MHz / 902-928MHz

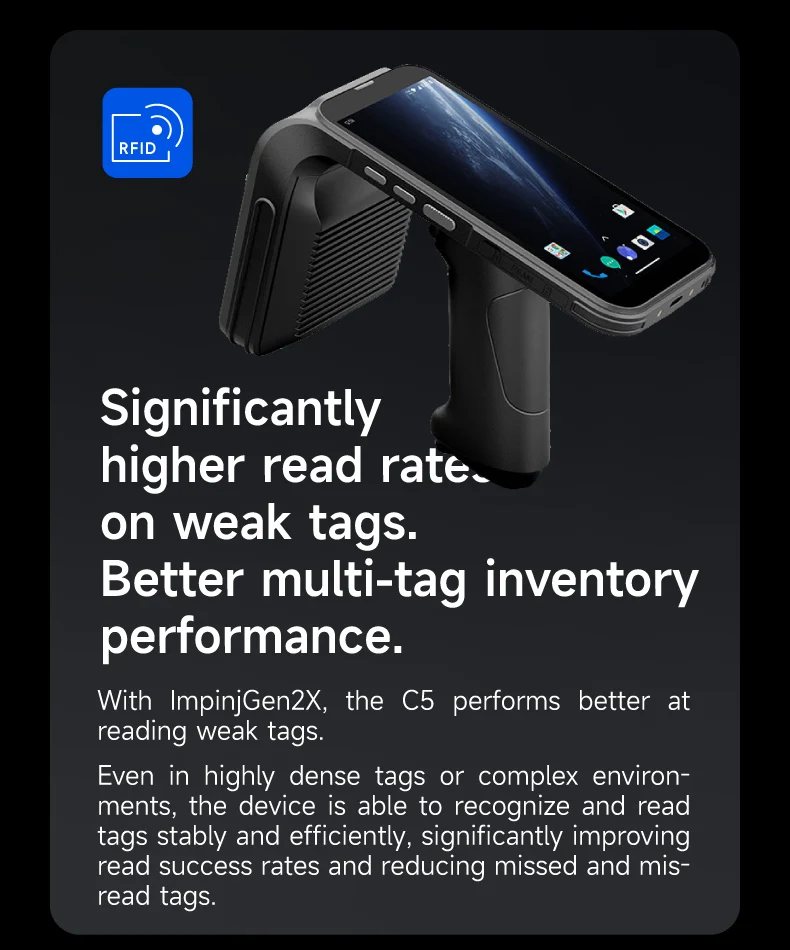

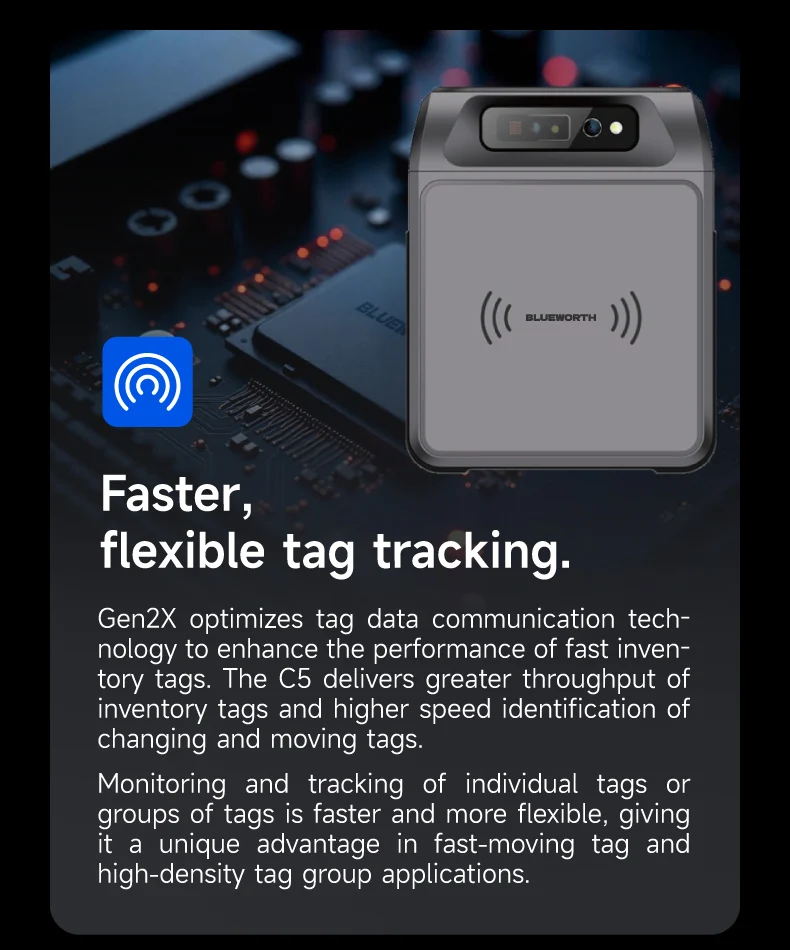

Impinj Gen2X	Supported
Protocol	EPCglobal Gen 2 (ISO18000-6C)

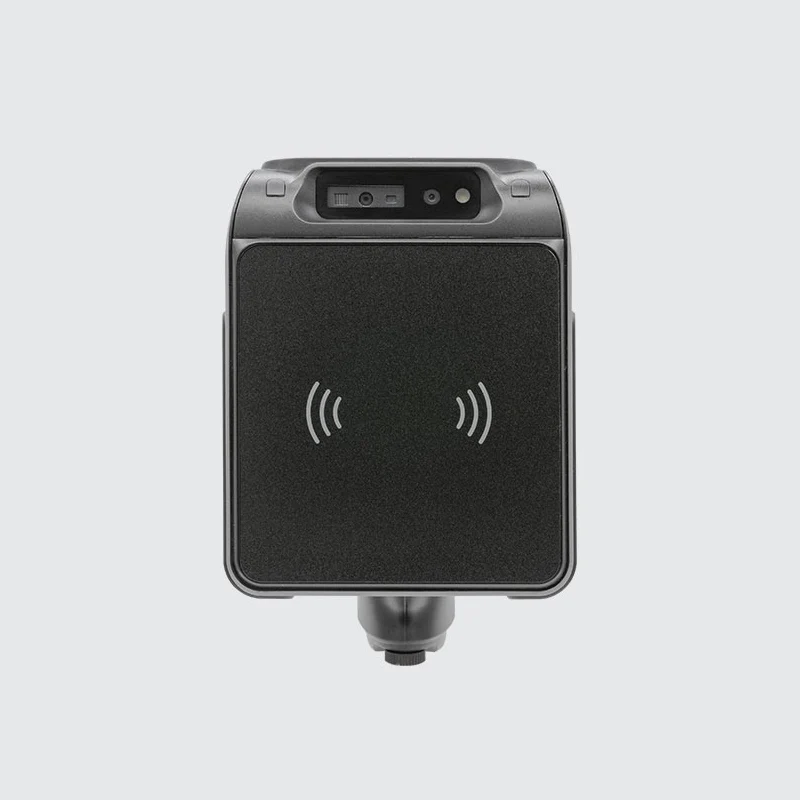

Antenna	Circular polarization; 5dBic
Output Power	1W (30dBm, +5dBm to +30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.)
Fastest Read Rate	1300+ tags / sec (Circular Polarized)
Max Read Range	5dBi 30m (Impinj MR6 tag, size 70 x 15mm) 32m (Impinj M750 tag, size 70 x 15mm) 33m (Alien H3 Anti-Metal tag, size 130 x 42mm) 4dBi 22m (Impinj MR6 tag, size 70 x 15mm) 26m (Impinj M750 tag, size 70 x 15mm) 27m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Note	* Ranges and rates depend on tags and environment

NFC

Frequency	13.56MHz
Protocol	ISO14443A / B, ISO15693, NFC-IP1, NFC-IP2, Impinj Prtoected Mode Supported etc.
Chips	M1 card (S50, S70), CPU card, NFC tags etc.
Range	2-4cm
Note	* This function is optional
